IO-Link in detail

IO-Link: The new standard at the fieldbus level

The IO-Link interface in our ultrasonic sensors gives you everything you need to implement continuous communication on all levels of the system architecture, right down to the sensor.  In this way, both machinery and equipment can be run in a more productive manner. IO-Link can enormously simplify the startup and maintenance of either a machine or appliance.

Functional principle

Following every switch-on, the sensor is in the SIO mode (Standard-Input-Output-mode) and functions just like any normal ultrasonic proximity switch with Push-Pull output stage.

With the wake-up signal, an IO-Link enabled controller can transfer the ultrasonic sensor into the communication or IO-Link modes. The controller can now exchange both process and service data with the device.

An IO-Link master can have one or a number of inputs and outputs. Only one IO-Link device is attached at each input/output. A standard 3-wire cable joins up the sensors and actuators. This non-shielded line can be up to 20 metres in length. Mixed operation is possible thanks to complete compatibility to the SIO mode: at a master a number of sensors and actuators can be run in the IO-Link and others in the SIO mode.

Continuous communication permits process/service data to be transmitted between sensors/actuators and the controller.

Filling systems equipped with IO-Link

An IO-Link system consists of IO-Link devices – mainly sensors, actuators or combinations of them – a standard 3-wire sensor/actuator cable and an IO-Link master.

The advantages of IO-Link:

  • In the IO-Link mode the distances measured are cyclically transmitted to the master; thus the IO-Link mode can replace an analogue output at no significant expense!
  • Following a sensor failure, the controller can automatically re-load all the settings into the new sensor.
  • Reduction in planning outlay achieved from a standardised integration of devices into the controller via a manufacturer-independent IODD description file
  • Reduced startup times thanks to a centralized provision of data and parameters in the controller
  • Greater equipment availability levels coming from maximum transparency and system-wide diagnosis all the way down into the device itself

Push-Pull output stage permits switching from SIO mode to IO-Link mode

Example of the system architecture

More informationen on IO-Link can be found at www.io-link.com.

Keep your eyes open in data communications!

IO-Link: The new standard at the fieldbus level

The IO-Link interface in our ultrasonic sensors gives you everything you need to implement continuous communication on all levels of the system architecture, right down to the sensor.  In this way, both machinery and equipment can be run in a more productive manner. IO-Link can enormously simplify the startup and maintenance of either a machine or appliance.

IO-Link in detail

Following every switch-on, the sensor is in the SIO mode (Standard I/O mode) and functions just like any normal ultrasonic proximity switch with push/pull output stage.

With the wake-up signal, an IO-Link enabled controller can transfer the ultrasonic sensor into the communication or IO-Link modes. The controller can now exchange both process and service data with the device.

An IO-Link master can have one or a number of inputs and outputs. Only one IO-Link device is attached at each input/output. A standard 3-wire cable joins up the sensors and actuators. This non-shielded line can be up to 20 metres in length.

A mixed operation is possible thanks to complete compatibility to the SIO mode (Standard-IO mode): at a master a number of sensors and actuators can be run in the IO-Link and others in the SIO mode.

Continuous communication permits process/service data to be transmitted between sensors/actuators and the controller.

Filling systems equipped with IO-Link

An IO-Link system consists of IO-Link devices – mainly sensors, actuators or combinations of them – a standard 3-wire sensor/actuator cable and an IO-Link master.






Sensors with IO-Link:

bks+ ultrasonic edge sensors

The bks+ edge sensor facilitates the contact-free web edge scanning of foils, paper and other soundimpermeable materials. IO-Link interface version 1.1.3 is integrated as standard in the sensor.

IO-Link Spezifikation: 1.1.3
Smart Sensor Profile: no
Prozessdaten: 16 Bit PDI
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)
Min. Zykluszeit: 4 ms

crm+ ultrasonic sensors

crm+ sensors are available in five different detection ranges with Push-Pull switching output and IO-Link interface Version 1.1.

IO-Link Specification: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Process data: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)

Learn more

cube ultrasonic sensors

cube variants: 1 Push-Pull switching output or 1 Push-Pull switching output and 1 analogue output or switchable to 2nd switching output.

IO-Link Specification: 1.1.2
Smart Sensor Profile (SSP): Digital Measuring Sensors
Process data: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38400 bit/s)

esf-1 ultrasonic splice and label sensor

The esf-1 fork sensor can detect labels reliably even at high label speeds. Available with IO-Link interface Version 1.1 and Smart Sensor Profile.

IO-Link Spezifikation: 1.1
Smart Sensor Profile (SSP): Digital measuring sensors
Prozessdaten: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)
Min. Zykluszeit: 4 ms



lcs+ ultrasonic sensors

The lcs+ ultrasonic sensors come in a very compact square-shaped housing - with analogue or switching output + IO-Link.

IO-Link Specification: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Process data: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38400 bit/s)
Min. cycle time: 43.2 ms (lcs+340/F/A); 60.8 ms (lcs+600/F/A)

lpc+ ultrasonic sensors

lpc+ well equipped: 2 Push-Pull switching outputs or 1 Push-Pull switching output with an analogue output in M18 housing.

IO-Link Specification: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Process data: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38400 bit/s)

mic+ ultrasonic sensors

mic+ sensors are available in five different detection ranges with Push-Pull switching output and IO-Link interface Version 1.1.

IO-Link Spezifikation: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Prozessdaten: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)

nano ultrasonic sensors

nano ultrasonic sensors in M12 sleeve are equipped with 1 Push-Pull switching output + IO-Link interface.

IO-Link Specification: 1.1.2
Smart Sensor Profile (SSP): Digital Measuring Sensors
Process data: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38400 bit/s)
Min. cycle time:  8 ms (nano-15/CF); 10 ms (nano-24/CF)

pico+ ultrasonic sensors

The new M18 ultrasonic sensor: 4 ranges, 3 operating modes, 2 housing’s designs, 1 IO-Link interface.

IO-Link Spezifikation: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Prozessdaten: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)

pico+TF ultrasonic level sensors

The new M22 ultrasonic level sensor: 4 ranges, 2 operating modes and 1 IO-Link interface.

IO-Link Spezifikation: 1.0
Smart Sensor Profile: nein
Prozessdaten: 16 Bit PDI
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)

pms ultrasonic sensor

The ultrasonic sensor with its unusual housing geometry meets the requirements of hygienic design. The housing made of stainless steel with PTFE-encapsulated transducer is designed for easy cleaning. The pms sensors are available with Push-Pull switching output with IO-Link version 1.1.

IO-Link Spezifikation: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Prozessdaten: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)

sks ultrasonic sensors

The sks sensors are the smallest cuboidal ultrasonic sensors from microsonic. There are 3 output versions and 1 IO-Link interface available.

IO-Link Spezifikation: 1.1
Smart Sensor Profile (SSP): Digital Measuring Sensors
Prozessdaten: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38.400 bit/s)
Min. Zykluszeit: 8 ms

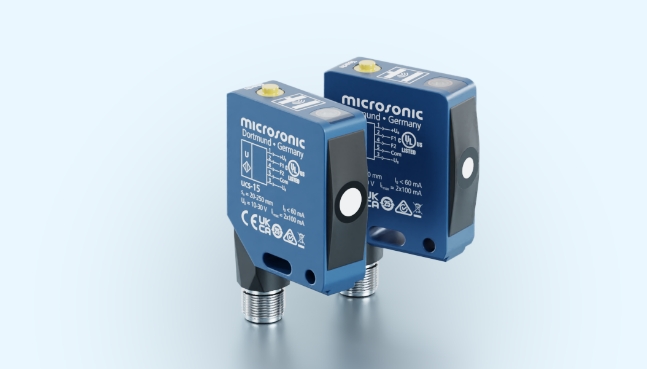

ucs ultrasonic sensors

ucs ultrasonic sensors are equipped with 2 Push-Pull switching outputs + IO-Link interface.

IO-Link Specification: 1.1.2
Smart Sensor Profile (SSP): Digital Measuring Sensors
Process data: 32 Bit PDI, SSP FunctionClass 0x800A
Port Typ: A (<200mA)
COM Mode: COM2 (38400 bit/s)
